Support Frames & Trusses
The Unshakable Foundation: Heavy-Duty Support Frames & Trusses for Maximum Conveyor Stability
A conveyor is only as strong as its foundation. Our Support Frames & Trusses form the rugged, reliable skeleton of your entire material handling system, engineered to carry heavy loads for over 30,000 hours with minimal upkeep. Fabricated from Q235 steel and protected by hot-dip galvanization, they defy rust, reduce maintenance cycles, and provide unwavering support for your idlers and belt. With customizable angles and belt widths, we deliver the precise, robust structure you need to eliminate frame-related downtime in mining, ports, and heavy industry.
Build Your Conveyor on a Foundation of Uncompromising Strength
In bulk material handling, the constant stress of heavy loads, vibration, and harsh environments can quickly degrade an under-engineered support structure. Our Support Frames & Trusses are the definitive solution, designed to be the durable, long-lasting backbone of your conveyor system. We go beyond basic fabrication, delivering structures that ensure perfect idler alignment, resist corrosion for decades, and provide the structural integrity needed for maximum operational uptime and safety.
Engineered for Lifetime Durability and Performance:
Eliminate Corrosion and Extend Service Life Beyond 30,000 Hours
Feature: Constructed from Q235/ST37 steel with hot-dip galvanized or electrostatic spray painting.
Advantage: Provides superior protection against rust and degradation in wet, humid, or chemically aggressive environments.
Benefit: Dramatically reduces maintenance costs and frame replacement frequency, delivering a lower total cost of ownership over the system’s lifespan.
Ensure System Stability Under Heavy Loads
Feature: Robust steel thickness from 4mm to 12mm, joined with mixed gas shielded arc welding.
Advantage: Creates an incredibly rigid structure that prevents misalignment and absorbs the impact of heavy, abrasive materials.
Benefit: Maintains precise belt tracking, reduces spillage, and protects your entire conveyor from the stresses of continuous operation.
Custom-Engineered to Your Exact Conveyor Profile

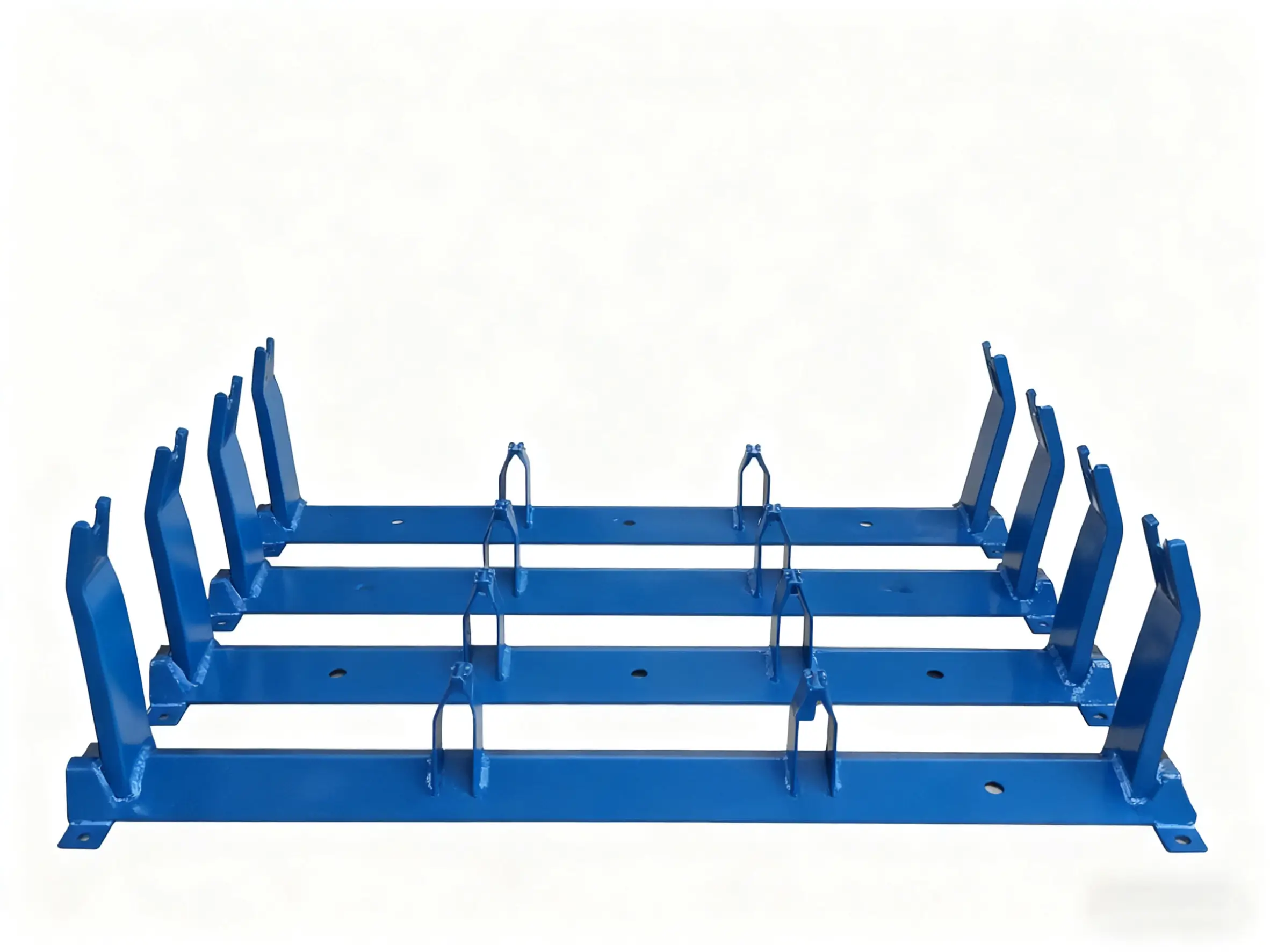

Feature: Available in linear and offset types, with troughing angles of 20° to 45°, for belt widths from 500mm to 2000mm.
Advantage: Offers the flexibility to build any conveyor path, whether straight, inclined, or complex.
Benefit: You get a perfect fit for your specific layout and material capacity needs, ensuring optimal performance from the ground up.
Rapid Deployment with Reliable Manufacturing

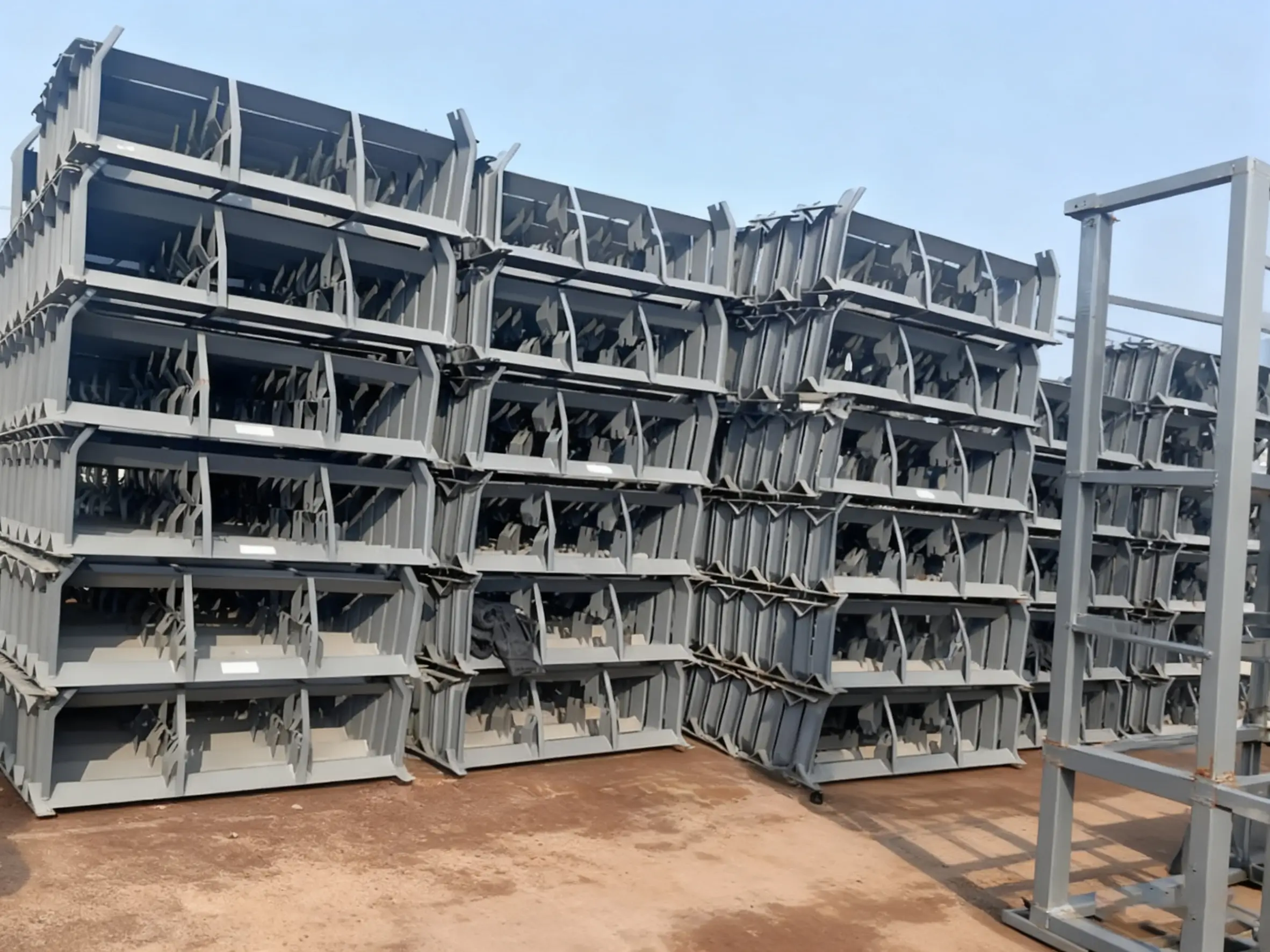

Feature: A production capacity of 5,000 pieces per week and acceptance of urgent orders.
Advantage: Ensures you get the structural components you need, when you need them, without project delays.
Benefit: Keeps your projects on schedule and your operations running smoothly, backed by OEM and custom design services for unique challenges.
Compliance and Quality You Can Trust:
Every frame is manufactured to meet major international standards (CEMA, DIN, ISO, etc.) and is ISO and CE certified, guaranteeing a consistent level of quality, safety, and interoperability that is recognized worldwide.
The Bedrock of Your Most Critical Conveyors:
This is the essential infrastructure for:
Long-Overland Conveyors
Mining and Quarrying Operations
Port and Terminal Loading Systems
Power Plants and Cement Facilities
Stop Compromising on Structural Integrity.
A weak frame can compromise your entire investment. Build your system on a foundation designed for decades of reliable service.
